What communications equipment do you need for IFR operations? In uncontrolled airspace, none is required by regulation.
What you need is up to your own judgment.
For operations under IFR in controlled airspace, two regulations relate directly to the minimum communications equipment:
a. (FAR 91.33 {§ 91.33 recodified to § 91.205})
Your aircraft must be equipped with a two-way radio communications system
appropriate to the ground facilities being used.
b. (FAR 91.125 {§ 91.125 recodified to § 91.183})
The pilot in command shall have a continuous listening watch maintained
on the appropriate frequency and shall report by radio as required.
Information on making radio reports and on the functions and services of Air Traffic Control agencies are considered in Chapter XI.
Ground Facilities
For civil IFR operations in controlled airspace, the ground facilities
available for radio communications include the following components of
Air Traffic Control:
1. Clearance delivery.
2. Ground control.
3. Tower control.
4. Departure control.
5. Enroute control.
6. Approach control.
Communications with these controlling units are normally conducted
on VHF frequencies between 118.000 and 136.000 MHz. Flight Service Stations,
while not exercising direct control over IFR aircraft, are ground facilities
available and used for radio communications. They play an important role
in the total ATC system (see pages 193 through 195 for details).
Automatic Terminal Information Service (ATIS) is provided at
certain high activity terminal areas. Recorded information on weather,
altimeter settings, instrument approaches and runways in use, tower frequencies
etc., is broadcast continuously on a specific VHF frequency.
The frequencies with which you should be familiar are listed below. The ILS and VOR frequencies listed may be used as receiving frequencies for communications as well as for navigation.
Air Navigation Aids
108.10 - 111.95 MHz: ILS localizers
108.00 - 117.95 MHz: VORs
Communications
118.00 - 121.40 MHz: Air Traffic Control
121.50 MHz: Emergency
121.60 - 121.925 MHz: Airport Utility and Ground Control
121.95 MHz: Flying Schools
121.975 - 123.075 MHz: Private Aircraft to Flight Service Stations
123.10 MHz: Search and Rescue (Temporary Control Towers)
123.125 - 123.275 MHz: Flight Test
123.30 MHz: Flying Schools
123.325 - 123.475 MHz: Flight Test
123.50 MHz: Flying Schools - Gliders
123.525 - 123.575 MHz: Flight Test
123.60 - 123.65 MHz: FSSs (Airport Advisory Service)
123.675 - 128.80 MHz: Air Traffic Control
123.825 - 132.00 MHz: Aeronautical Enroute (Operational Control)
132.025 - 135.975 MHz: Air Traffic Control
Airborne Equipment
Radio communications requirements have increased with the growth of aviation. Implementation of 25 kHz spacing in 1977 now provides 720 VHF channels (118.000 - 136.000) for air/ground communications. For training, however, you need only a transmitter and receiver suitable for communications with the ground facilities in your training area. Any lightweight equipment which provides the minimum standard frequencies included in the table above, may be sufficient for training but may be inadequate for the instrument rated pilot.
Communications equipment of more recent design reflects the concern of manufacturers for the operational needs of the instrument pilot. Under the best conditions, a pilot flying on instruments must think, decide, and move quickly. Equipment design that contributes to indecision, uncertainty or fatigue creates unnecessary problems when the pilot is flying by reference to instruments.
"One and One-half" Systems
Figure 9-1 illustrates a dual-purpose radio typical of the "one and one-half" systems. These systems incorporate communications and navigation radios in a single compact unit. This is a welcome change from the older installations that required an extensive cockpit search to locate switches, selectors, and associated indicators and too much time to tune and operate. The "one and one-half" radio enables you to communicate with the necessary ground facilities on the transceiver (combined transmitter/receiver) while simultaneously tuned on the separate "one-half" of the set to a VOR station. This radio has controls that are easily identifiable and crystal-tuned frequencies that can be selected with only a glance or two for tuning.
Figure 9-1. "One and one-half" system.
|
Operation of the communications sections of these radios is simple. The volume switch on the left is the ON/OFF switch for both COMM and NAV sections. The squelch knob is rotated to reduce background noise. While the set is warming up, set the knob fully clockwise; then turn the control counterclockwise to increase the squelch until the background noise is cut out. Further increase of the squelch setting will decrease receiver sensitivity. If you are tuning in a weak signal, decrease the squelch. Otherwise, once the control is established at a comfortable level, no further adjustment is necessary except to make an occasional check of receiver sensitivity. Transmit/receive frequencies are selected by rotation of the inner and outer knobs on the COMM side of the set.
The "one and one-half" system described has the following communication/navigation frequency coverage:
Communications
Transmit/receive 360 channels (118.00
- 135.95 MHz)
Navigation
All VOR and localizer frequencies (108.00
- 117.95 MHz)
Expanded NAV/COMM Systems
The advantages of the "one and one-half" system can be expanded with installation of additional radios and centralized control units for rapid selection of receivers and transmitters. The "building block" concept, from which most light aircraft radio design evolves, provides for progressive expansion of your equipment as your training and operational needs increase. For example, if you depart under IFR from an uncontrolled airport and proceed via Victor airway to another uncontrolled airport, your communication/navigation needs may be as little as one VOR frequency and one transmitting frequency for communication with FSS.
When you progress to all-weather IFR flying in and out of unfamiliar terminal areas, your workload can be excessive unless you have sufficient standby equipment for frequent changes of communications channels. Figure 9-2 shows how communications equipment can be grouped for quick reference and operation with minimum distraction from the problem of aircraft control.

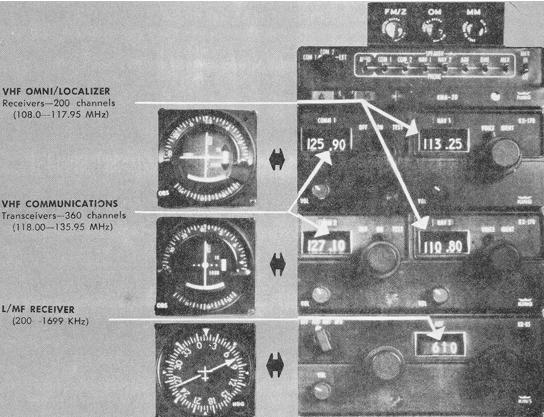

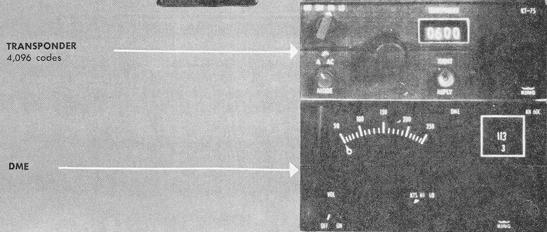

Figure 9-2. Full navigation-communications panel.
 |
|
 |
Radiotelephone Procedure
From the time you contact ground control for taxi instructions the effectiveness of your coordination with Air Traffic Control will depend upon your competence in communications and your knowledge of traffic procedures under Instrument Flight Rules. Many students have no serious difficulty in learning basic aircraft control and radio navigation, but stumble through even the simplest radio communications. During the initial phase of training in Air Traffic Control procedures and radiotelephone techniques, some students experience difficulty.
Why should talking and listening to a controller pose any problems? The average person takes speaking and listening habits for granted and has had no occasion to develop the specialized skills associated with radio communications. Studies of listening comprehension show that most people listen with low efficiency even when consciously attempting to remember what they hear. Poor listeners are easily distracted. From habit, they tolerate conditions unfavorable to concentration. Their minds wander when they hear anything unexpected or difficult to understand. They are inclined to be more concerned with what they are about to say than what they should be listening to. When in confusing situations, they are more easily aroused emotionally, and may have trouble comprehending what they hear.
These deficiencies are intensified for the pilot in a busy air traffic environment. In addition to attending to cockpit duties demanding rapid division of attention, quick judgment, concentration, and careful planning, you the pilot must be continuously alert to communications from Air Traffic Control. You should be prepared to listen and to transmit in the brief and unmistakably clear terms vital to orderly control.
You attain proficiency in radiotelephone technique just as you do in developing any other skill. You should first recognize that radio communications under Instrument Flight Rules, though not difficult, require speaking and listening habits different from those you have been accustomed to. Skill in transmitting and listening will come rapidly once you have studied and practiced the basic terminology.
FAA controllers are intensively trained to speak clearly and concisely
in an abbreviated terminology. They use standard words and phrases to save
time, reduce radio congestion, and lessen the changes of misunderstanding
and confusion. However, the most competent controllers won't "get through"
to you under the best conditions unless you are ready to listen and understand.
Communication is a two-way effort, and the controllers expect
you to work toward the same level of competency that they strive to achieve.
Tape recordings comparing transmissions by professional pilots and inexperienced
or inadequately trained general aviation pilots illustrate the need for
effective radiotelephone technique. In a typical instance, an airline pilot
made a position report in 5 seconds; whereas a private pilot reporting
the same fix took 4 minutes to transmit essentially the same information.
The difference lay not in equipment and flight experience, but in communication
technique. The novice forgot to tune the radio properly before transmitting,
interrupted other transmissions, repeated unnecessary data, forgot other
essential information, requested instructions repeatedly, and created the
general impression of cockpit disorganization. The novice who is embarrassed
and concerned about inexperience should remember that every pilot had to
make a beginning and was not expected to first communicate like a veteran
airline pilot. But the private pilot who learns and practices standardized
words and phrases until they become part of the normal radio vocabulary
will be able to communicate effectively even under severe reception conditions.
Phonetic Alphabet
It is often necessary in transmitting to identify certain letters and/or groups of letters, or to spell out difficult words, since certain sounds have low intelligibility when mixed with a background of other noises. The standard phonetic alphabet (Fig. 9-3) identifies each letter of the alphabet with a word that is easily understood. These words are pronounced to make the message clear when individual letters ar transmitted, and are used to spell out words that are hard to understand on the air.
Figure 9-3 Phonetic Alphabet
------------------------------------
A - Alpha
B - Bravo
C - Charlie
D - Delta
E - Echo
F - Foxtrot
G - Golf
H - Hotel
I - India
J - Juliett
K - Kilo (Key-lo)
L - Lima (Lee-mah)
M - Mike
N - November
O - Oscar
P - Papa
Q - Quebec (Keh-beck)
R - Romeo
S - Sierra
T - Tango
U - Uniform
V - Victor
W - Whiskey
Y - Yankee
Z - Zulu
Numerals
0 - Zero
1 - Wun
2 - Too
3 - Tree
4 - Fo-wer
5 - Fife
6 - Six
7 - Seven
8 - Ait
9 - Ni-ner
------------------------------------
Use of Numbers
Numbers are usually of extreme importance in radio messages and
are difficult to hear among other noises. The standard pronunciations in
Figure 9-3 have been adopted because they have been found most intelligible.
a. Normally, numbers are transmitted by speaking each number
separately. For example, 3284 is spoken as "tree too ait fo-wer."
b. There are certain exceptions to the above rule. Figures indicating
hundreds and thousands in round numbers, up to and including 9,000 are
spoken in hundreds or thousands as appropriate. 500 is spoken as "fife
hundred"; 1,200 as "wun thousand too hundred." Beginning with 10,000, the
individual digits in thousands of feet are spoken. For 13,000, say "wun
tree thousand", for 14,500, say "wun-fo-wer thousand fife hundred."
c. Aircraft identification numbers are spoken as individual
digits/letters. 1234Q is spoken as "wun too tree fo-wer Keh-beck."
d. Time is stated in four digits according to the 24-hour clock.
The first two digits indicate the hour; the last two, minutes after the
hour (Fig. 9-4), as in "wun niner too zero"; "zero niner fo-wer fife."
e. Field elevations are transmitted with each number spoken
separately, as in Figure 9-4.
--------------------------------------------------------
Time
--------------------------------------------------------
0000 - Zero Zero Zero Zero
0920 - Zero Niner Too Zero
1200 - Wun Too Zero Zero
1645 - Wun Six Fower Fife
--------------------------------------------------------
Field elevation
--------------------------------------------------------
10 ft - Field
elevation Wun Zero.
75 ft - Field
elevation Seven Fife.
583 ft - Field elevation
Fife Ait Tree.
600 ft - Field elevation
Six Zero Zero.
1,250 ft - Field elevation Wun
Too Fife Zero.
2,500 ft - Field elevation Too
Fife Zero Zero.
--------------------------------------------------------
Figure 9-4. Expressing time
and field elevation.
------------------------------------------------------------------------
Word or phrase
Meanings
------------------------------------------------------------------------
Acknowledge ............ Let me know that you have
received and
understand this message.
Affirmative ............ Yes.
Correction ............. An error has been made
in this transmission.
The correct version is....................
Go ahead ............... Proceed with your message.
How do you hear me? .... Self explanatory.
I say again ............ Self explanatory.
Negative ............... That is not correct.
Out .................... This conversation is ended
and no response is
expected.
Over ................... My transmission is ended
and I expect a
response from you.
Read back .............. Repeat all of this message
back to me exactly
as received after I have given "over."
Roger .................. I have received all of
your last transmission.
(To acknowledge receipt; shall not be used
for any other purpose.)
Say again .............. Self explanatory.
Speak slower ........... Self explanatory.
Stand by ............... If used by itself it means,
I must pause for
a few seconds. If the pause is longer than a
few seconds or if "standby" is used to prevent
another station from transmitting, it must be
followed by the word "out."
That is correct ........ Self explanatory.
Verify ................. Check with the originator.
Words twice ............ As a request - Communication
is difficult:
Please say every word twice.
------------------------------------------------------------------------
Figure 9-5. Radiotelephone words and phrases.
Procedural Words and Phrases
The words and phrases in Figure 9-5 should be studied and practiced until they are readily and easily used and clearly enunciated. To pilots and controllers, their meanings are very specific. Careless or incorrect use can cause both delay and confusion.
Voice Control
Students inexperienced in the use of the microphone are usually surprised at the quality of their own transmissions when they are taped and played back. Words quite clear when spoken directly to another person can be almost unintelligible over the radio. Effective radiotelephone technique sounds self-conscious and unnatural when you practice it, both because the terminology is new and because you are habitually more concerned with what you are saying than in how it sounds. Maximum readable radiotelephone transmissions depend on the following factors:
1. Volume. Clarity increases with volume up to a level just short
of shouting. Speaking loudly, without extreme effort or noticeably straining
the voice, results in maximum intelligibility. To be understood, the spoken
sound must be louder at the face of the microphone than the surrounding
noises. Open the mouth so the tone will carry to the microphone. A higher-pitched
tone is easier to hear than a lower one. A distinct and easily readable
side tone in your earphones or speaker is a reliable index of correct volume.
2. Tempo. Effective rate of speech varies with the speaker,
the nature of the message, and conditions of transmission and reception.
Note the following suggestions for improving your rate of transmission:
a. Talk slowly enough so that each word and phrase is
spoken distinctly, particularly key words and phrases.
b. Talk slowly enough so the listener will have time,
not only to hear, but to absorb the meaning.
3. Pronunciation and Phrasing. As you notice the differences
in the transmission of various pilots and controllers, you can readily
identify those with exceptional skill. They sound natural and unhurried.
The words are grouped for easy readability. they pronounce every word clearly
and distinctly without apparent effort, without unnecessary words, and
without "uh's" and "ah's". They create the impression of competence that
any expert conveys after enough study and practice.
Practice
Many excellent audio training aids are available for practicing radiotelephone procedures. With tapes or records, a microphone, and writing materials, you can develop communications skills under excellent simulated conditions. Practice until you can transmit concisely, hear accurately, and listen critically. Hearing is largely a matter of having an adequate receiver and knowing how to tune it. Critical listening is a more complicated skill. You are ready to listen to a controller when you are thoroughly familiar with your communications equipment and are ready to copy the transmissions, evaluate what is said, and if necessary read it back without neglecting other cockpit duties that may demand your attention. Study of Air Traffic Control procedures under Instrument Flight Rules will enable you to "keep ahead" of communications - just as you keep ahead of your basic flying and navigation - by knowing what is ahead of you and attending to details in the proper sequence at the appropriate time.
Reminders on Use of Equipment
1. Maintain a "readiness" to communicate. With your flight log
handy, charts in order, and other necessary materials readily available,
you can eliminate fumbling and confusion. You cannot organize an intelligible
message, or listen to one, in a disorganized cockpit.
2. Know your radiotelephone equipment and practice tuning it.
Check the knobs, switches and selectors before you transmit. Monitor the
frequency you are using before transmitting. If you hear nothing on a normally
busy terminal frequency, for example, check your volume control; you may
be interrupting another transmission.
3. Never subordinate aircraft control to communications. Don't
turn your aircraft loose in your haste to transmit.
4. Learn to take notes as you listen. Make written notes of times,
altitudes, and other information as you hear it. You have enough to think
about in planning ahead without having to waste time thinking back.
