4-1-1 Altitude and Distance Limitations

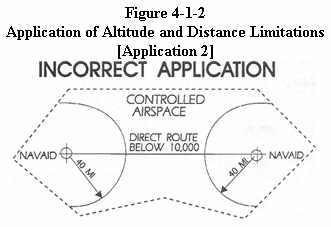

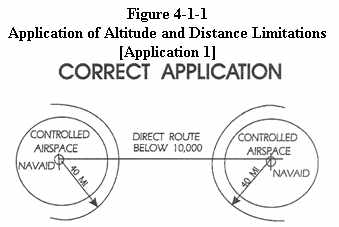

When specifying a route other than an established airway or route, do not exceed the limitations in the Table on any portion of the route which lies within controlled airspace. (For Altitude and Distance Limitations, see Table 4-1-1, Table 4-1-2, Table 4-1-3, and Table 4-1-4). (For correct application of altitude and distance limitations see Figures 4-1-1 and Figure 4-1-2).
REFERENCE -
FAAO 7110.65, Fix Use, paragraph 4-1-5.
FAAO 7110.65, Methods, paragraph 5-6-2.
Table 4-1-1
VOR/VORTAC/TACAN NAVAIDs
Normal Usable Altitudes and Radius Distances
--------------------------------------------
Class Altitude
Distance (miles)
--------------------------------------------
T 12,000 and
below 25
L Below 18,000
40
H Below 14,500
40
H 14,500 - 17,999
100
H 18,000 - FL
450 130
H Above FL 450
100
--------------------------------------------
Table 4-1-2
L/MF Radio Beacon (RBN)
Usable Radius Distances for All Altitudes
--------------------------------------------
Class Power (watts)
Distance (miles)
--------------------------------------------
CL Under
25
15
MH Under 50
25
H
50 - 1,999
50
HH 2,000 or
more 75
--------------------------------------------
Table 4-1-3
ILS
Usable
Height and Distance*
--------------------------------------------
Height (feet)
Distance (miles)
above transmitter
from transmitter
--------------------------------------------
4,500
10 (for glideslope)
4,500
18 (for localizer)
--------------------------------------------
* Use the current flight check height/altitude limitations
if different from the above minima.
Table 4-1-4
MLS
Usable
Height and Distance*
--------------------------------------------
Height (feet)
Distance (miles)
above transmitter
from transmitter
--------------------------------------------
20,000
20 (for glidepath)
20,000
20 (for azimuth)
--------------------------------------------
* Use the current flight check height/altitude limitations
if different from the above minima.
|
 |
Altitude and distance limitations need not be applied when any
of the following conditions are met:
a. Routing is initiated by ATC or requested by the pilot and
the following is provided:
1. Radar monitoring.
{New-98-8 Revised August 13, 1998}
2. As necessary, course guidance unless the aircraft is /E, /F, or /G equipped.
NOTE -
1 - Paragraph 4-4-1, Route Use, requires radar monitoring be provided
at FL 450 and below to aircraft on random (impromptu) RNAV routes. Paragraph
5-5-1, Application, requires radar separation be provided for these routes
at FL 450 and below.
2 - When a clearance is issued beyond the altitude and/or distance
limitations of a NAVAID, in addition to being responsible for maintaining
separation from other aircraft and airspace, the controller is responsible
for providing aircraft with information and advice related to significant
deviations from the expected flight path.
REFERENCE -
P/CG term - Radar Monitoring.
b. Operational necessity requires and approval has been obtained
from the Frequency Management and Flight Inspection
Offices to exceed them.
c. Requested routing is via an MTR.
REFERENCE -
FAAO 7110.65, Methods, paragraph 5-6-2.
Use an altitude consistent with the limitations of the aid when
clearing an aircraft to cross or hold at a fix.
REFERENCE -
FAAO 7110.65, Methods, paragraph 5-6-2.
Use a route not meeting service volume limitations only if an aircraft requests to operate "VFR-on-top" on this route.
NOTE -
Aircraft equipped with TACAN only are expected to:
a. Define route of flight between TACAN or VORTAC NAVAIDs in the same
manner as VOR-equipped aircraft.
b. Except in Class A airspace, submit requests for "VFR-on-top" flight
where insufficient TACAN or VORTAC NAVAIDs exist to define the route.
REFERENCE -
FAAO 7110.65, Methods, paragraph 5-6-2.
Request aircraft position reports only over fixes shown on charts used for the altitude being flown, except as follows:
NOTE -
Waypoints filed in random RNAV routes automatically become compulsory
reporting points for the flight unless otherwise advised by ATC.
{New-98-8 Revised August 13, 1998. "DP" was "SID"}
a. Unless the pilot requests otherwise, use only those fixes shown
on high altitude en route charts, high altitude instrument approach procedures
charts, and DP charts when clearing military turbojet single-piloted aircraft.
b. Except for military single-piloted turbojet aircraft, unpublished
fixes may be used if the name of the NAVAID and, if appropriate, the radial/course/azimuth
and frequency/channel are given to the pilot. An unpublished fix is defined
as one approved and planned for publication which is not yet depicted on
the charts or one which is used in accord with the following:
REFERENCE -
FAAO 7130.3, Holding Pattern Criteria.
1. Unpublished fixes are formed by the en route radial and either
a DME distance from the same NAVAID or an intersecting radial from an off-route
VOR/VORTAC/TACAN. DME shall be used in lieu of off-route radials, whenever
possible.
2. Except where known signal coverage restrictions exist, an
unpublished fix may be used for ATC purposes if its location does not exceed
NAVAID altitude and distance limitation, and when off-route radials are
used, the angle of divergence meets the criteria prescribed below.
NOTE -
Unpublished fixes should not negate the normal use of published intersections.
Frequent routine use of an unpublished fix would justify establishing a
fix.
REFERENCE -
FAAO 7110.65, Altitude and Distance Limitations, paragraph 4-1-1.
3. Do not hold aircraft at unpublished fixes below the lowest
assignable altitude dictated by terrain clearance for the appropriate holding
pattern airspace area (template) regardless of the MEA for the route being
flown.
4. When the unpublished fix is located on an off-route radial
and the radial providing course guidance, it shall be used consistent with
the following divergence angles.
(a) When holding operations are involved with respect
to subparagraphs (b) and (c) below, the angle of divergence shall be at
least 45 degrees.
(b) When both NAVAIDs involved are located within 30 NM
of the unpublished fix, the minimum divergence angle is 30 degrees.
(c) When the unpublished fix is located over 30 NM from
the NAVAID generating the off course radial, the minimum divergence angle
shall increase 1 degree per nautical mile up to 45 NM; e.g., 45 NM would
require 45 degrees.
(d) When the unpublished fix is located beyond 45 NM from
the NAVAID generating the off course radial, the minimum divergence angle
shall increase 1/2 degree per nautical mile; e.g., 130 NM would require
88 degrees.
c. Fixes contained in the route description of MTRs are considered
filed fixes.
d. TACAN only aircraft (type suffix M, N, or P) possess TACAN
with DME, but no VOR or LF navigation system capability. Assign fixes based
on TACAN or VORTAC facilities only.
NOTE -
TACAN only aircraft can never be held overhead the NAVAID, be it TACAN
or VORTAC.
e. DME fixes shall not be established within the no course signal
zone of the NAVAID from which inbound holding course information would
be derived.
REFERENCE -
FAAO 7110.65, NAVAID Fixes, paragraph 2-5-3.
FAAO 7110.65, Methods, paragraph 5-6-2.
