Scratches or nicks no deeper than 10 percent of the wall thickness in aluminum alloy tubing may be repaired, if they are not in the heel of a bend. Replace lines with severe die marks, seams, or splits in the tube. Any crack or deformity in a flare is also unacceptable and is cause for rejection. A dent of less than 20 percent of the tube diameter is not objectionable, unless it is in the heel of a bend. Dents can be removed by drawing a bullet of proper size through the tube by means of a length of cable.
A severely damaged line should be replaced. However, the line can be repaired by cutting out the damaged section and inserting a tube section of the same size and material. Flare both ends of the undamaged and replacement tube sections and make the connection by using standard unions, sleeves, and tube nuts. If the damaged portion is short enough, omit the insert tube and repair by using one union and two sets of connecting fittings.

When repairing a damaged line, be very careful to remove all chips and burrs. Any open line that is to be left unattended for some time should be sealed, using metal, wood, rubber, or plastic plugs or caps.

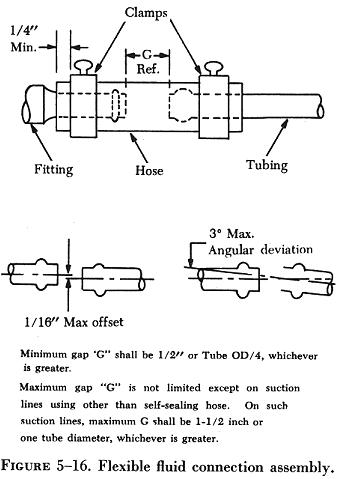

When repairing a low pressure line using a flexible fluid connection assembly, position the hose clamps carefully in order to prevent overhang of the clamp bands or chafing of the tightening screws on adjacent parts. If chafing can occur, the hose clamps should be repositioned on the hose. Figure 5-16 illustrates the design of a flexible fluid connection assembly and gives the maximum allowable angular and dimensional offset.

Layout of Lines

Remove the damaged or worn assembly, taking care not to further damage or distort it, and use it as a forming template for the new part. If the old length of tubing cannot be used as a pattern, make a wire template, bending the pattern by hand as required for the new assembly. Then bend the tubing to match the wire pattern. Never select a path that does not require bends in the tubing.

A tube cannot be cut or flared accurately enough so that it can be installed without bending and still be free from mechanical strain. Bends are also necessary to permit the tubing to expand or contract under temperature changes and to absorb vibration. If the tube is small (under one-fourth inch) and can be hand formed, casual bends may be made to allow for this. If the tube must be machine formed, definite bends must be made to avoid a straight assembly.

Start all bends a reasonable distance from the fittings, because the sleeves and nuts must be slipped back during the fabrication of flares and during inspections. In all cases the new tube assembly should be so formed prior to installation that it will not be necessary to pull or deflect the assembly into alignment by means of the coupling nuts.
