PARACHUTE RIGGER HANDBOOK


Chapter 2

DEPLOYMENT TYPES

There are currently six different types of deployment methods.

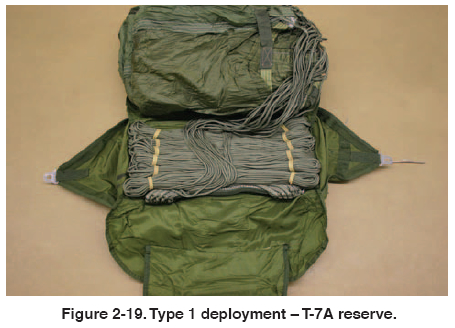

TYPE 1: CANOPY FIRST DEPLOYMENT

With this method, the lines are stowed vertically or horizontally in the container. Examples of this method are the T-7A chest pack or the B-12 back parachute. [Figure 2-19]

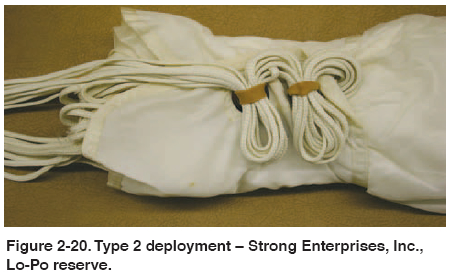

TYPE 2: TWO-STOW DIAPER OR HALF DIAPER

This method utilizes split line groups. Two stows from one line group lock the diaper, compensated by offsetting stows of the other line group in the container with the remainder of the lines stowed in the container. Examples of this method are the early Strong 26' Lo-Po and the Pioneer “K” series reserves. [Figure 2-20]

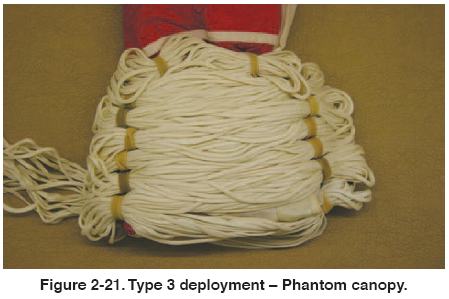

TYPE 3: ASCUITTO OR PIGLET-STYLE FLAT DIAPER

This deployment features a full diaper with all lines stowed left to right or perpendicular to the radial seam. Examples of this method are the Piglet, Phantom, and Security Aero Conical (SAC) canopies. [Figure 2-21]

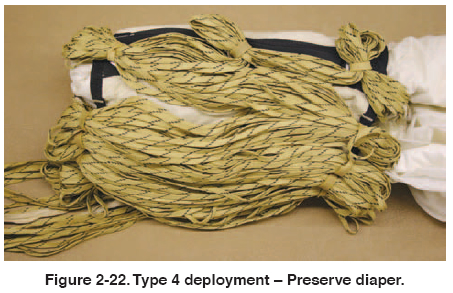

TYPE 4: HANDBURY OR PRESERVE FULL DIAPER

This features a choker-type diaper which wraps around the canopy skirt. It is locked with three stows and all lines are stowed on the diaper parallel to the radial seam. Examples of this method are the Preserve series canopies, Strong Lo-Po Lite, and the Hobbit square reserve. [Figure 2-22] The military quarter bag is basically a version of the Type 4 method.
