PARACHUTE RIGGER HANDBOOK


Chapter 5

STEP 2. STACKING AND PLEATING THE RESERVE CANOPY

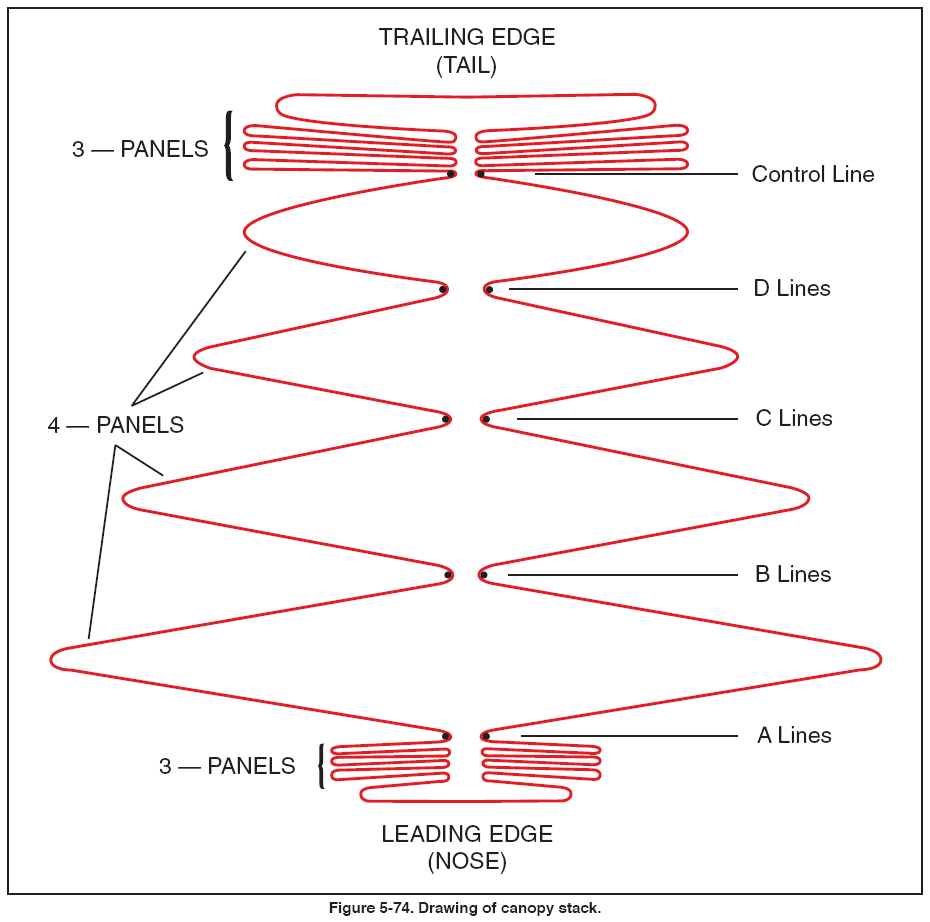

Note: The canopy stack should look like figure 5-74.

It is imperative that the rigger maintains control over the packing process at all times. In particular, it is important to keep the lines taut and straight and to keep the center “wind channel” of the canopy stack clear and the line attachment tabs stacked neatly.

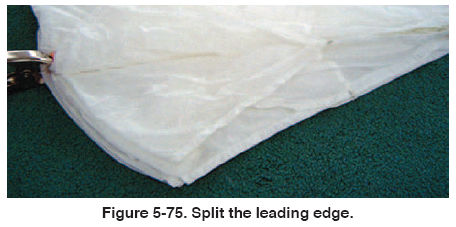

1. Pull tension on the “A” lines. Split the leading edge in half. [Figure 5-75]

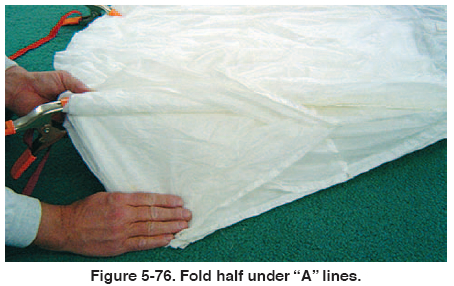

2. Fold half under “A” lines. [Figures 5-76 and 5-77]

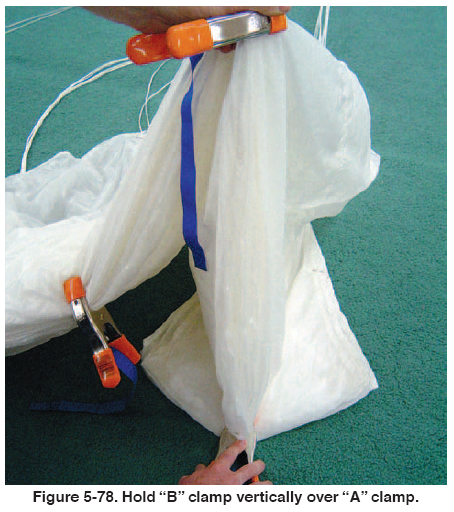

3. Pick up the “B” lines by the clamp and hold vertically over the “A” clamp. [Figure 5-78] Note the spread of the leading edge panels.

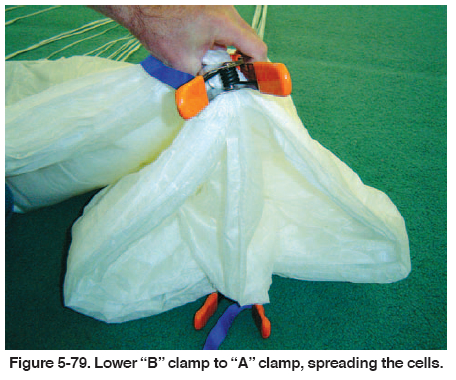

4. Lower the “B” clamp and material down to the “A” clamp. [Figure 5-79] Spread the cells equally to both sides. Keep the center cell in the middle.

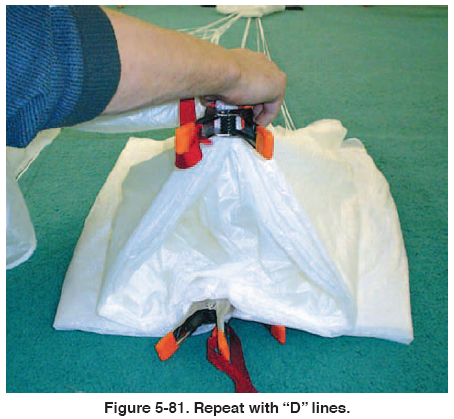

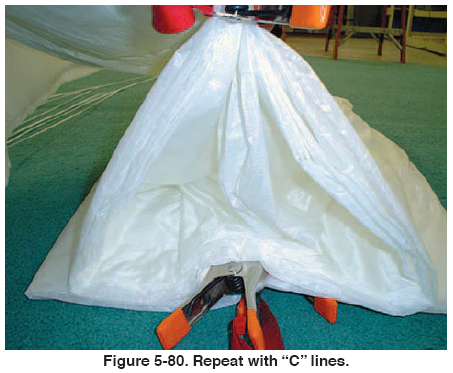

5. Repeat this step with the “C” [Figure 5-80] and the “D” line groups. [Figure 5-81]

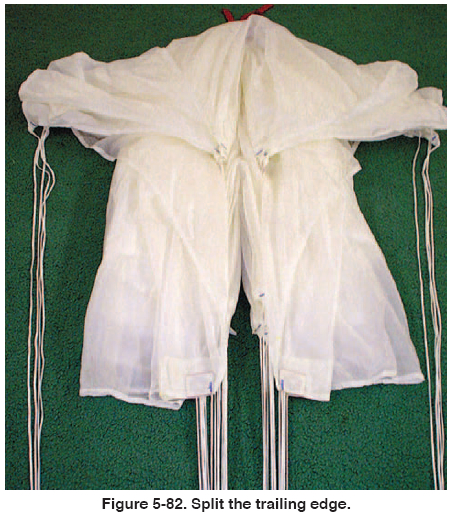

6. Split the trailing edge and separate the control lines into right and left groups. [Figure 5-82]

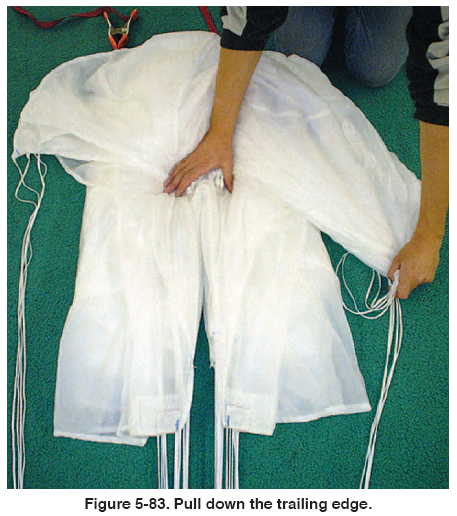

7. Remove the “D” clamp. Hold down the “D” lines at the line attachment point and pull down the control lines. [Figure 5-83] Do not disturb the center of the canopy stack.
