A.S.Yakovlev Russian Aviation Part 1

A.S.Yakovlev

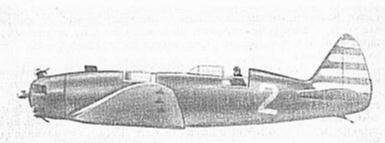

AIR-12  2 -seat racer, built for long range competitions. Main landing gear - retractable. Pilot's cockpit is located well after the wing and enclosed with narrow canopy. Passenger cabin (above the wing) is flush with the fuselage and could be used for extra fuel tanks. The wing had swept leading edge and straight trailing edge. AIR-12 rolled out in July 1936, and participated in aircraft contest same year.

On September 21 Yu.I.Piontkovskij within factory trials schedule performed a non-stop flight Moscow - Sevastopol - Kharkov. 2000km were covered in 10h45min. AIR-12 was re-engined with more powerful M-11E engine. Female crew V.S.Grizodubova as a pilot and navigator M.M.Raskova) flew 1444km from Moscow to Aktubinsk, setting another record on October 24, 1936.


















Technical data
Type AIR-12
Function Racer
record setter
Year 1936
Crew 1 or 2
Engines 1*100hp M-11
later 1*150hp M-11E
Length 7.17m
Height ?m
Wingspan 11.0m
Wing area 15.6m2
Empty weight 558kg
Loaded weight 1204kg
Wing load 77.2kg/m2
Power load 12.0kg/hp
Maximum Speed 235km/h
Landing Speed 93km/h
Takeoff Run 220m
Range 2000km
Flight Endurance 10h45min
Payload
Fuel 430+40kg
Seats (1)
